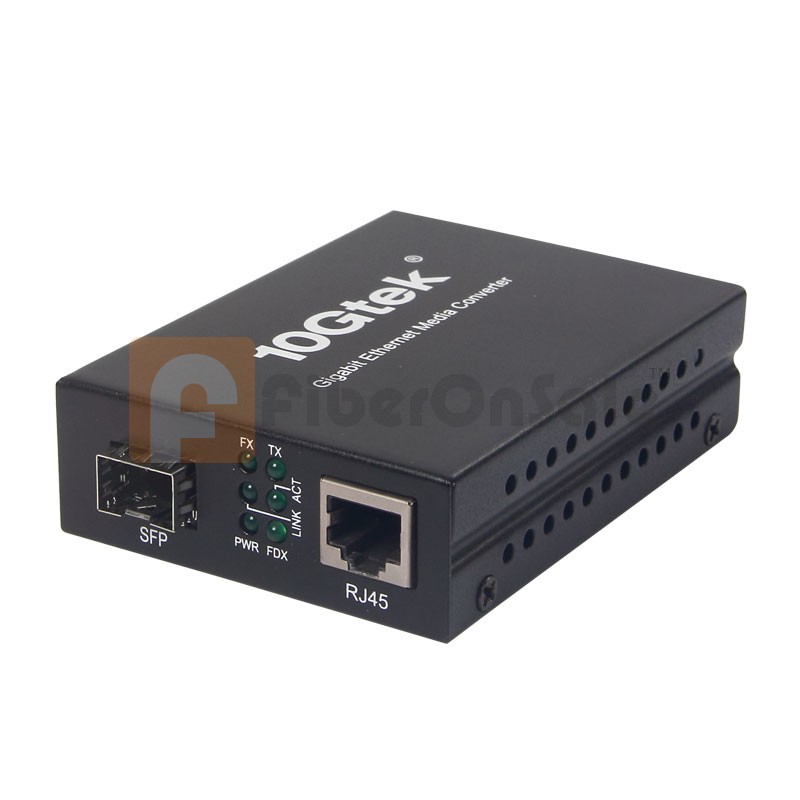

10/100/1000M Gigabit Ethernet Media Converter, RJ45 to SFP Slot

Payment:
Paypal or Credit/debit card
Wire Transfer, West Union | See details
Returns:
Satisfactory return or item exchange | See details
Guarantee:
Money back guarantee | See details
Warranty:
Limited Warranty | See details
Volume pricing:
If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
SKU#:A7S2-33-1GX1GT-SFP
Price:
$18.99
Quick Overview:
Optical Port: 1.25Gbps
RJ45 Port: 10M/100M/1000M
Full Duplex or Half Duplex
SFP Transceiver not included
Extends distance: up to 100km (depends on SFP Transceiver)
Working temperature range: 0°C to 60°C

Warranty: 2-Year
10Gtek Made in China

* Required Fields

Qty:

10/100/1000M 1SFP+1RJ45 Ports Gigabit Ethernet Media Converter

  • 10/100/1000M 1SFP+1RJ45 Ports Gigabit Ethernet Media Converter
    10/100/1000M 1SFP+1RJ45 Ports Gigabit Ethernet Media Converter 2
    10/100/1000M 1SFP+1RJ45 Ports Gigabit Ethernet Media Converter 3
    10/100/1000M 1SFP+1RJ45 Ports Gigabit Ethernet Media Converter 4
    10/100/1000M 1SFP+1RJ45 Ports Gigabit Ethernet Media Converter 5
    10/100/1000M 1SFP+1RJ45 Ports Gigabit Ethernet Media Converter 6
Processing Time
Processes in 24 hours: Processing Time is guaranteed to be shorter.
Typical Processing Time: 1-2 weeks
Shipping Time
FedEx Overnight: Within 1-4 business days
DHL: Within 2-6 business days
EMS: Within 4-15 business days
UPS: Within 2-5 business days
Hong Kong Post Airmail: Within 10-30 business days
Payment Methods
FiberOnSale FiberOnSale FiberOnSale
FiberOnSale Paypal western
Wire Transfer
10/100/1000M Gigabit Ethernet Media Converter, RJ45 to SFP Slot
10Gtek's A7S2-33-1GX1GT-SFP Media Converter is used to expanding existing Gigabit Ethernet networks. The easy implementation and expansion of 1000Base-TX/FX networks can be further assured with this converter.
The converter is completely transparent when connected so the network performs exactly the way it did before - only now, it allows the co-existence of both copper and fiber mediums. SFP connectors are available. Extra distances are possible with the single mode version delivering up to 20km connectivity per transmitted segment.
The A7S2-33-1GX1GT-SFP allows the installation of fiber cabling anywhere within a Gigabit Ethernet network topology by directly connecting to existing devices. Its compact modular design facilitates deployment in a narrow desktop location to save space.

Product Description:
● Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex
● UTP port supports MDI / MDI-X auto crossover
● Multimode Fiber: the max distance up to 224m/ 550m
Singlemode Fiber: the max distance up to 100km
● Supporting the max 1536 byte Ethernet packet
● Supporting flow control
● Adopting internal power supply
● Operating standards: IEEE802.3z/AB, 10/100/1000Base-T and 1000Base-SX/LX/HX
● MAC address table: 4K
● Data Buffer: 256K
● Connector
UTP: RJ-45,10/100/1000Mbps
Fiber: LC,1000Mbps
● Cable
UTP cable: Cat 5e or Cat 6 (the max distance up to 100m)
Fiber (multimode): 50/125, 62.5/125μm (the max distance up to 550/224m)
Singlemode: 8.3/125, 8.7/125, 9/125μm (the max distance up to 100km)
● Flow Control
Full Duplex: IEEE802.3x
Half Duplex: back pressure
● Power: AC110V to DC. 5V, DC 48V to DC 5V
● Ambient temperature: 0 ~ +50℃
● Storage temperature: -20 ~ +70℃
● Humidity: 5% ~ 90%
● Dimensions:
Internal Power: 40(high)*110(width)*140(length)mm / External Power: 26(high)*70(width)*93(length)mm
