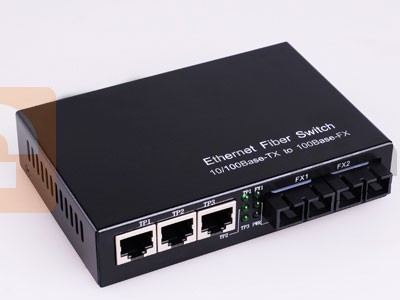

10/100M Multimode Ethernet Fiber Media Converter 3*UTP + 2*MMF Ports
There are two 100M Fiber Ports and three 10/100M UTP Ports. The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC from USA and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet as Fiber Repeaters or Ethernet single / multimode fiber converters, and other special requirements of the environment.
Product Description:
● It can convert Optical-Electric Ethernet signals between 10/100M UTP ports (TX) and 100M optical fiber interfaces (FX). The conversion of optical signals can be carried out between multi/multimode optical fiber, between single/multimode optical fiber or between single/singlemode optical fiber.
● UTP port supports MDI / MDI-X auto crossover
● Broadcast storm protection
● Supporting the max 1916 bytes frame
● Operating standards: IEEE802.3u 100Base-TX and 100Base-FX
● Connector
UTP: RJ-45,10/100Mbps
Fiber: ST/SC/FC,100Mbps (Full Duplex)
● Cable
UTP: Cat. 5 (the max distance up to 100m)
Fiber (multimode): 50/125, 62.5/125μm (the max distance up to 2km)
Fiber (singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm (the max distance up to 100km)
● Flow Control
Full Duplex: IEEE802.3x flow control
Half Duplex: bake pressure flow control
● Power supply: AC110 ~ 240V
● Environment temperature: 0 ~ +50℃
● Storage temperature: -20 ~ +70℃
● Humidity: 5% ~ 90%
● Dimensions: 180*45*143mm
Product Description:
● It can convert Optical-Electric Ethernet signals between 10/100M UTP ports (TX) and 100M optical fiber interfaces (FX). The conversion of optical signals can be carried out between multi/multimode optical fiber, between single/multimode optical fiber or between single/singlemode optical fiber.
● UTP port supports MDI / MDI-X auto crossover
● Broadcast storm protection
● Supporting the max 1916 bytes frame
● Operating standards: IEEE802.3u 100Base-TX and 100Base-FX
● Connector
UTP: RJ-45,10/100Mbps
Fiber: ST/SC/FC,100Mbps (Full Duplex)
● Cable
UTP: Cat. 5 (the max distance up to 100m)
Fiber (multimode): 50/125, 62.5/125μm (the max distance up to 2km)
Fiber (singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm (the max distance up to 100km)
● Flow Control
Full Duplex: IEEE802.3x flow control
Half Duplex: bake pressure flow control
● Power supply: AC110 ~ 240V
● Environment temperature: 0 ~ +50℃
● Storage temperature: -20 ~ +70℃
● Humidity: 5% ~ 90%
● Dimensions: 180*45*143mm
