2 Channels CWDM MUX/DEMUX, Monitor Port, IL=1.25dB, LC

Payment:
Paypal or Credit/debit card
Wire Transfer, West Union | See details
Returns:
Satisfactory return or item exchange | See details
Guarantee:
Money back guarantee | See details
Warranty:
Limited Warranty | See details
Volume pricing:
If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  Need Help?
Click here we can help you
SKU#:CM1-2xM
Evaluate:

2 Review(s) | Write a Review

Price:
$139.00
Quick Overview:
Duplex CWDM MUX/DEMUX
2 channels, LC
IL=1.25dB
Default choose 1 RU 19" Rack
Plese chooes 2 channels. Note1: When using with 1310nm legacy SDH/SONET, CWDM wavelengths 1271, 1291, 1311, 1331 and 1351nm should not be used. Note2:When using with 1550nm legacy SDH/SONET, CWDM wavelengths 1511, 1531, 1551, 1571 and 1591nm should not be used.
Qty:

2 Channels CWDM MUX/DEMUX, Monitor Port, IL=1.25dB, LC

  • 2 Channels CWDM MUX/DEMUX, Monitor Port, IL=1.25dB, LC
    2 Channels CWDM MUX/DEMUX, Monitor Port, IL=1.25dB, LC
Processing Time
Processes in 24 hours: Processing Time is guaranteed to be shorter.
Typical Processing Time: 1-2 weeks
Shipping Time
FedEx Overnight: Within 1-4 business days
DHL: Within 2-6 business days
EMS: Within 4-15 business days
UPS: Within 2-5 business days
Hong Kong Post Airmail: Within 10-30 business days
Payment Methods
FiberOnSale FiberOnSale FiberOnSale
FiberOnSale Paypal western
Wire Transfer
2 Channels CWDM MUX/DEMUX, Monitor Port, IL=1.25dB, LC
Multiplexer (MUX) and demultiplexer (DEMUX) are combined together into a single piece of equipment for bi-directional data transmission over two fibers.

FiberOnSale CWDM Mux/Demux is a passive technology, it allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. T1 over fiber at 1570nm transported alongside 10Gbps Ethernet at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.
FiberOnSale provides a complete portfolio of CWDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications such as: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV. And we provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice.

Front Panel Details



Wavegate front panel detaild example


A. Common port:
● LC, SC, ST and FC connectors available.

B. Standard port 1310nm:
● Allows a legacy 1310nm signal to pass. That is to say, it can carry LR optics, LX optics etc.
● LC, SC, ST and FC connectors available.

C. Standard port 1550nm:
● Allows a legacy 1550nm signal to pass. That is to say, it can carry ER optics, ZR optics, LX optics, ZX optics etc.
● LC, SC, ST and FC connectors available.

D. Mux/Demux port for specific wavelengths:
● LC, SC, ST and FC connectors available.
● Compliant with the ITU G.657A1 standard as default.

E. Express port:
● Enables the cascading of two CWDM MUX/DEMUX modules, doubling the channel capacity on the common fiber link.
● Channel Isolation is 15dB as default, 16dB ~40dB available on request.
● LC, SC, ST and FC connectors available.

F. Monitor port:
● Connects measurement/monitoring equipment, such as power meters or network analyzers, to the module outputs.
● When finished monitoring, disconnect the instruments and the network is left undisturbed.
● LC, SC, ST and FC connectors available.
● Tap percentage is 5% as default, 1%, 2%, 3%, or 10% available on request.



NOTE:
● Actual layout depends on the chosen connector type as well as other factors. However, the principal scheme stays the same
● We provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice, need more details, please contact at info@FiberOnSale.com
● When using with 1310nm legacy SDH/SONET, CWDM wavelengths 1270, 1290, 1310, 1330 and 1350nm should not be used.
● When using with 1550nm legacy SDN/SONET, CWDM wavelengths 1510, 1530, 1550, 1570 and 1590nm should not be used.

Item Details


● 2 channels CWDM mux and demux in one 1U Rack
● Com port is duplex
● 1U 19 inch Rack Mount Housing
● It is equipped with configuration ports like Monitor, Express port according to customer choice (see options)
● Front panel is equipped with adapters according to customer choice (see options)
● Passive, no electric power required. (MTBF ca. 500 years)
● Low insertion loss
● Simple to install, requires no configuration or maintenance
● ISO 9001 manufacturing facility

Mechanical Details for Housing



Note: Please, note that the drawings shown here only show the dimensions and do not the specific configuration of the module.

Specification


Parameters Unit CWDM Module
Wavelength Range nm 1260 ~ 1620
Channel Center Wavelength nm 1270 / 1290 / … / 1610 or 1271 / 1291 / … /1611
Channel Spacing nm 20
Channel Passband nm λc ± 7.5
Channel No. λ 2 4 8 16 18
Insertion Loss dB ≤0.8 ≤1.5 ≤2.5 ≤5.2 ≤6.4
Adjacent Channel Isolation dB ≥ 30
Non-adjacent Channel Isolation dB ≥ 40
Wavelength thermal stability nm/℃ ≤ 0.003
Insertion loss thermal stability dB/℃ ≤ 0.005 ≤ 0.007 ≤ 0.008
PDL dB ≤ 0.1 ≤0.15 ≤ 0.15 ≤ 0.20 ≤ 0.25
Polarization mode dispersion ps ≤ 0.1 ≤ 0.15
Directivity dB ≥ 50
Return loss dB ≥ 45
Optical Power mW ≤ 500
Operating Temperature ℃ -10 ~ +70
Storage Temperature ℃ -40 ~ +85
Relative Humidity % 5 ~ 95
Dimension 　 ABS Box or LGX Box or 1U(2U) Rackmount
Note: 1. Customization is available.
2. We can make low insertion loss solution as well. For more information, please feel free to contact at info@fiberonsale.com.
3. Specified without connector, and add an additional 0.2dB loss per connector.
Features:
  • 2 channels CWDM mux and demux in one 1U Rack
  • Com port is duplex
  • 1U 19 inch Rack Mount Housing
  • It is equipped with configuration ports like Monitor, Express port according to customer choice (see options)
  • Front panel is equipped with adapters according to customer choice (see options)
  • Passive, no electric power required. (MTBF ca. 500 years)
  • Low insertion loss
  • Simple to install, requires no configuration or maintenance
  • ISO 9001 manufacturing facility
Mechanical Details for Housing:

Note: Please, note that the drawings shown here only show the dimensions and do not the specific configuration of the module.

Front Panel Details:

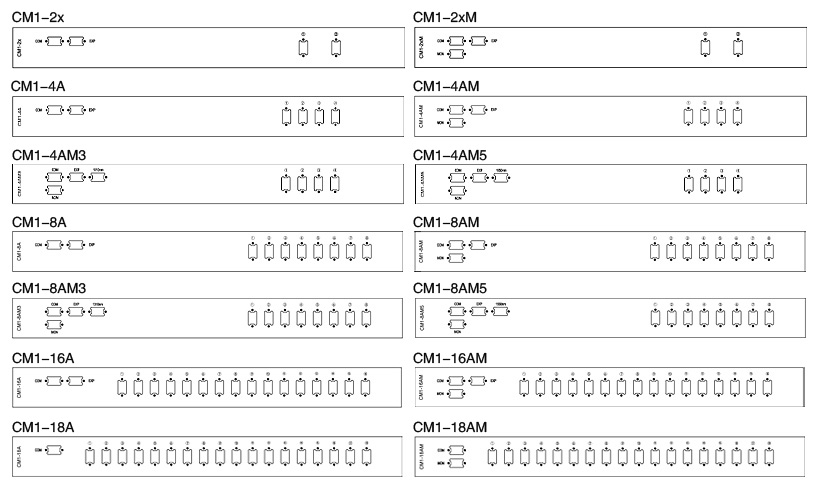

CWDM MUX DEMUX CM1 panel

  1. Common port:
    • LC, SC, ST and FC connectors available.
  2. Standard port 1310nm:
    • Allows a legacy 1310nm signal to pass. That is to say, it can carry LR optics, LX optics etc.
    • LC, SC, ST and FC connectors available.
  3. Standard port 1550nm:
    • Allows a legacy 1550nm signal to pass. That is to say, it can carry ER optics, ZR optics, LX optics, ZX optics etc.
    • LC, SC, ST and FC connectors available.
  4. Mux/Demux port for specific wavelengths:
    • LC, SC, ST and FC connectors available.
    • Compliant with the ITU G.657A1 standard as default.
  5. Express port:
    • Enables the cascading of two CWDM MUX/DEMUX modules, doubling the channel capacity on the common fiber link.
    • Channel Isolation is 15dB as default, 16dB ~40dB available on request.
    • LC, SC, ST and FC connectors available.
  6. Monitor port:
    • Connects measurement/monitoring equipment, such as power meters or network analyzers, to the module outputs.
    • When finished monitoring, disconnect the instruments and the network is left undisturbed.
    • LC, SC, ST and FC connectors available.
    • Tap percentage is 5% as default, 1%, 2%, 3%, or 10% available on request.
NOTE:
  • Actual layout depends on the chosen connector type as well as other factors. However, the principal scheme stays the same
  • We provide optional port configurations such as: Express Port, Monitor  Port, 1310nm passband port and 1550nm port for these multiplexers  according to customer choice, need more details, please contact at  info@FiberOnSale.com
  • When using with 1310nm legacy SDH/SONET, CWDM wavelengths 1270, 1290, 1310, 1330 and 1350nm should not be used.
  • When using with 1550nm legacy SDN/SONET, CWDM wavelengths 1510, 1530, 1550, 1570 and 1590nm should not be used.
Order Information:
  Description CWDM Mux/Demux Fiber Channel Wavelength Monitor 1310nm window 1550nm window IL Connector
CM1-18AM CWDM Mux/Demux 18 Channel, 1270~1610nm, w/ Monitor, IL=4.25dB, LC CWDM Mux/Demux Dual Fiber 18 Channel 1270~1610nm w/ Monitor     IL=4.25dB LC
CM1-16AM CWDM Mux/Demux 16 Channel, 1270~1350nm,1410~1610nm, w/ Monitor, IL=3.75dB, LC CWDM Mux/Demux Dual Fiber 16 Channel 1270~1350nm, 1410~1610nm w/ Monitor     IL=3.75dB LC
CM1-16xM CWDM Mux/Demux 16 Channel, Customized, w/ Monitor, IL=3.75dB, LC CWDM Mux/Demux Dual Fiber 16 Channel Customized w/ Monitor     IL=3.75dB LC
CM1-8AM CWDM Mux/Demux 8 Channel, 1470~1610nm, w/ Monitor, IL=2.75dB, LC CWDM Mux/Demux Dual Fiber 8 Channel 1470~1610nm w/ Monitor     IL=2.75dB LC
CM1-8BM CWDM Mux/Demux 8 Channel, 1270~1430nm, w/ Monitor, IL=2.75dB, LC CWDM Mux/Demux Dual Fiber 8 Channel 1270~1430nm w/ Monitor     IL=2.75dB LC
CM1-8CM CWDM Mux/Demux 8 Channel, 1270~1350nm,1410~1450nm, w/ Monitor, IL=2.75dB, LC CWDM Mux/Demux Dual Fiber 8 Channel 1270~1350nm, 1410~1450nm w/ Monitor     IL=2.75dB LC
CM1-8DM CWDM Mux/Demux 8 Channel, 1270~1410nm, w/ Monitor, IL=2.75dB, LC CWDM Mux/Demux Dual Fiber 8 Channel 1270~1410nm w/ Monitor     IL=2.75dB LC
CM1-8xM CWDM Mux/Demux 8 Channel, Customized, w/ Monitor, IL=2.75dB, LC CWDM Mux/Demux Dual Fiber 8 Channel Customized w/ Monitor     IL=2.75dB LC
CM1-4AM CWDM Mux/Demux 4 Channel, 1470~1530nm, w/ Monitor, IL=1.75dB, LC CWDM Mux/Demux Dual Fiber 4 Channel 1470~1530nm w/ Monitor     IL=1.75dB LC
CM1-4BM CWDM Mux/Demux 4 Channel, 1510~1570nm, w/ Monitor, IL=1.75dB, LC CWDM Mux/Demux Dual Fiber 4 Channel 1510~1570nm w/ Monitor     IL=1.75dB LC
CM1-4CM CWDM Mux/Demux 4 Channel, 1550~1610nm, w/ Monitor, IL=1.75dB, LC CWDM Mux/Demux Dual Fiber 4 Channel 1550~1610nm w/ Monitor     IL=1.75dB LC
CM1-4DM CWDM Mux/Demux 4 Channel, 1270~1330nm, w/ Monitor, IL=1.75dB, LC CWDM Mux/Demux Dual Fiber 4 Channel 1270~1330nm w/ Monitor     IL=1.75dB LC
CM1-4EM CWDM Mux/Demux 4 Channel, 1290~1350nm, w/ Monitor, IL=1.75dB, LC CWDM Mux/Demux Dual Fiber 4 Channel 1290~1350nm w/ Monitor     IL=1.75dB LC
CM1-4xM CWDM Mux/Demux 4 Channel, Customized, w/ Monitor, IL=1.75dB, LC CWDM Mux/Demux Dual Fiber 4 Channel Customized w/ Monitor     IL=1.75dB LC
CM1-2xM CWDM Mux/Demux 2 Channel, Customized, w/ Monitor, IL=1.25dB, LC CWDM Mux/Demux Dual Fiber 2 Channel Customized w/ Monitor     IL=1.25dB LC

CWDM Mux/Demux With Monitor

Specification:
Parameters Unit CWDM Module
Wavelength Range nm 1260 ~ 1620
Channel Center Wavelength nm 1270 / 1290 / … / 1610 or 1271 / 1291 / … /1611
Channel Spacing nm 20
Channel Passband nm λc ± 7.5
Channel No. λ 2 4 8 16 18
Insertion Loss dB ≤0.8 ≤1.5 ≤2.5 ≤5.2 ≤6.4
Adjacent Channel Isolation dB ≥ 30
Non-adjacent Channel Isolation dB ≥ 40
Wavelength thermal stability nm/℃ ≤ 0.003
Insertion loss thermal stability dB/℃ ≤ 0.005 ≤ 0.007 ≤ 0.008
PDL dB ≤ 0.1 ≤0.15 ≤ 0.15 ≤ 0.20 ≤ 0.25
Polarization mode dispersion ps ≤ 0.1 ≤ 0.15
Directivity dB ≥ 50
Return loss dB ≥ 45
Optical Power mW ≤ 500
Operating Temperature ℃ -10 ~ +70
Storage Temperature ℃ -40 ~ +85
Relative Humidity % 5 ~ 95
Dimension 　 ABS Box or LGX Box or 1U(2U) Rackmount
Note: 1. Customization is available.
2. We can make low insertion loss solution as well. For more information, please feel free to contact at info@fiberonsale.com.
3. Specified without connector, and add an additional 0.2dB loss per connector.
