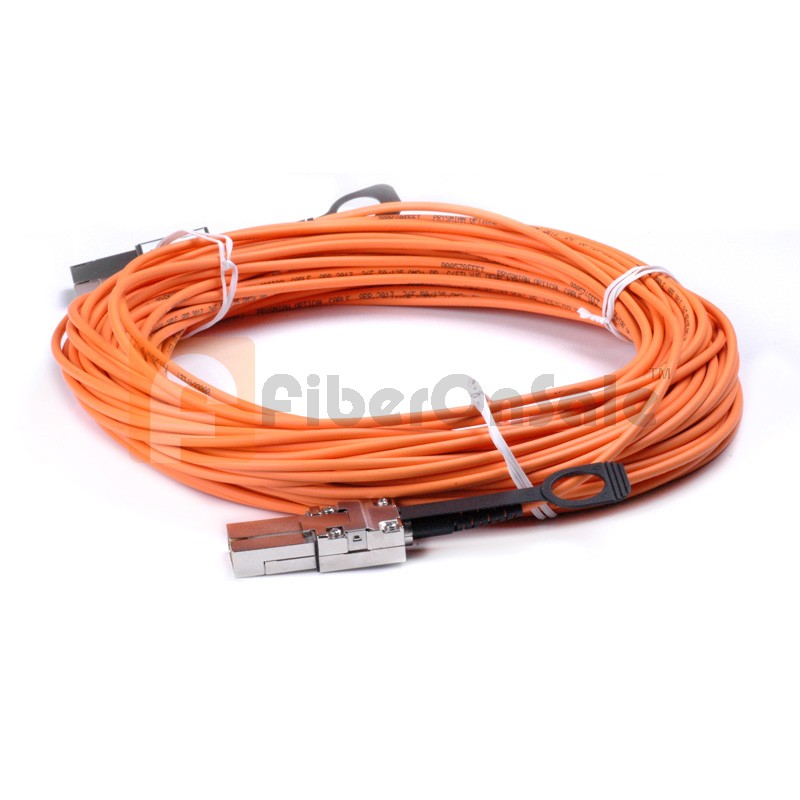

20M(65.62ft) 100GBASE CXP Active Optical Cable
10GTek’s CXP active optical cable assemblies are fully duplex 12 channel cable assemblies that supports signal transmission rates up to 10.3 Gb/s per channel for distances from 2 to 100 meters using laser optimized advance high-performance multimode fiber (OM3). The CXP cable interface is based on the SFF-8632 and Infiniband industry standards.
These cables are ideal for high density HPC signal transmission applications typically seen in most large data centers and in high computational applications. 10Gtek CXP cables support Infiniband SDR, DDR and QDR signal transmission performance and also support Fibre Channel 8G per channel transmission.
Features:
● Compliant to SFF-8642: Mini Multilane Series: Shielded Integrated Connector, and IBTA Annex A6 CXP Interface Specification
● Compliant to InfiniBand Architecture Specification.
● Twelve independent Transmitters, and twelve independent Receivers, all operate at 10Gbps.
● Bi-directional operation, 12 × 10 Gbps per direction.
● Support transmission distance up to 100 meters.
● Low power consumption: 3W (max)
● 12ch 850nm VCSEL array
● 12ch PIN-detector array
● Operating case temperature 0°to 70° .
● RoHS 6/6 compliant
● I2C communication bus.
Applications:
● 12.5 Gbps Proprietary Interconnects
● 100 GbE and IB-QDR/IB-DDR/IB-SDR interconnects
● Data Aggregation, Backplane and Proprietary Protocol and Density Applications
● Datacom/Telecom switch & router connections
These cables are ideal for high density HPC signal transmission applications typically seen in most large data centers and in high computational applications. 10Gtek CXP cables support Infiniband SDR, DDR and QDR signal transmission performance and also support Fibre Channel 8G per channel transmission.
Features:
● Compliant to SFF-8642: Mini Multilane Series: Shielded Integrated Connector, and IBTA Annex A6 CXP Interface Specification
● Compliant to InfiniBand Architecture Specification.
● Twelve independent Transmitters, and twelve independent Receivers, all operate at 10Gbps.
● Bi-directional operation, 12 × 10 Gbps per direction.
● Support transmission distance up to 100 meters.
● Low power consumption: 3W (max)
● 12ch 850nm VCSEL array
● 12ch PIN-detector array
● Operating case temperature 0°to 70° .
● RoHS 6/6 compliant
● I2C communication bus.
Applications:
● 12.5 Gbps Proprietary Interconnects
● 100 GbE and IB-QDR/IB-DDR/IB-SDR interconnects
● Data Aggregation, Backplane and Proprietary Protocol and Density Applications
● Datacom/Telecom switch & router connections
