42D0501

42D0501

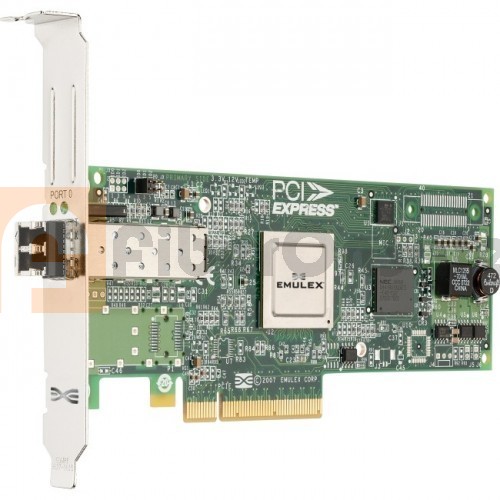

IBM 8 GB Fibre Channel Singleport HBA

Features
Function at 8/4/2 Gbps (auto-negotiation)
Persistent binding LUN masking
2,048 concurrent logins
PCI Express 2.0 x8 compliance, backwards compatibility with PCI-e 1.0a
One (for Single-port) and two (for Dual-port) SFP+ with LC-style connectors
Standard PCI Express card with low profile MD2 form factor
Support for both standard and low-profile PCI-E slots

Specifications:
Data rate: 1600 MBps full duplex per port
Performance: up to 200,000 IOPS per port
Boot support: BIOS, FCode, UEFI, EFI
Protocols: FCP-3-SCSI; FC-Tape (FCP-2)
Standard supported: Enhanced Authentication (FC-SP), Data Integrity (T10) and Network isolation (NPIV)

Operating environment
The adapter is supported in the following environment:
Temperature:
Operating: 0° to 55°C (32° to 131°F) at 0 to 914 m (0 to 3,000 ft)
Storage: -40° to 70°C (-40° to 158°F) at 914 to 2,133 m (3,000 to 7,000 ft)
Relative humidity:
Operating: 10% to 90% (relative, non-condensing)
Non-operating: 5% to 93% (relative, non-condensing)
