451871-B21

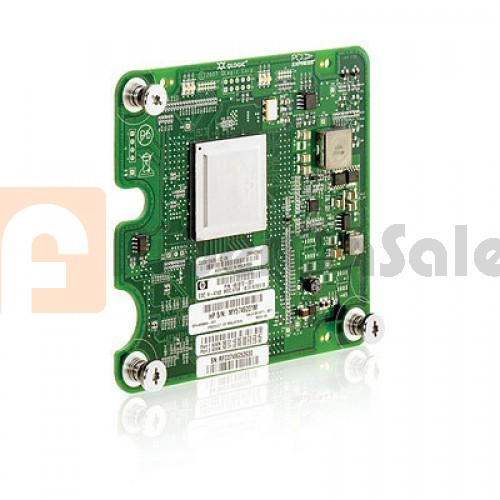

HP QLogic QMH2562 8Gb FC HBA for HP BladeSystem c-Class
Bus type: PCI Express x8 Gen 1
PCI Express x4 Gen 2
Memory: 1 MB SSRAM per port
Data path: 8/4/2 Gbps auto-negotiation(8.5/4.25/2.125 Gbps)
Data throughput: 3200 MBps (full-duplex)
IOPs: 200,000 per port
Ports: Two
Form factor: Type I Mezzanine card
ASIC: QLogic ISP2532
OS Driver support: Windows Server 2003, Windows Server 2008, Linux, VMware ESX 3.5, and HP-UX
PCIe Compliance: PCI Express Base Specification rev. 2.0
Power usage: 7.8 max
5.1 (typical) x8 Gen 1
3.8 (typical) x4 Gen 2 (if system is Gen 2 capable)
APIs: SNIA HBA API V2, SMI-S, FDMI
RoHS: RoHS 6
Airflow: Airflow is provided by BladeSystem chassis
Compatibility:
HP ProLiant BL460c G6 Server Blade
HP ProLiant BL490c G6 Server Blade
HP ProLiant BL280c G6 Server Blade
HP ProLiant BL685c G6 Server Blade
HP Integrity BL860c Server Blade
HP Integrity BL870c Server Blade
Note: It does not support any of the G5 or earlier server blades.
