456972-B21

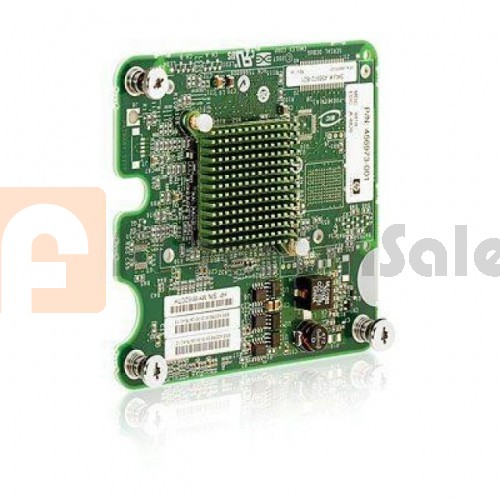

HP 8Gb/s Fibre Channel Mezzanine Card Dual Channel HBA for the HP BladeSystem c-Class
Standards
ANSI Fibre Channel: FC-PI-4, FC-FS-2, FC?FS-2/AM1, FC-LS, FC-AL-2, FC-GS-6, FC?FLA, FC-PLDA, FC-TAPE, FC-DA, FCP through FCP-4, SBC-3, FC-SP, FC-HBA and SMI-S v1.1
PCI Express base spec 2.0
Fibre Channel class 2 and 3
Architecture
Dual-channel
8Gb/s, 4Gb/s or 2Gb/s FC Link speeds automatically detected
Integrated data buffer and code space memory
Comprehensive OS Support
Windows, HP-UX ,Linux, VMware
Hardware Environments
ProLiant and Integrity
Power & Environmental Requirements
Volts: 3.3 VDC
Power consumption (typ/max): 6.8W / 10W
Operating Temperature: 0° to 60°C (32° to 140°F)
Airflow required: 200 lf/m
Storage temperature: -40° to 70°C (-40° to 158°F)
Relative humidity: 5% to 95% non-condensing
Agency Approvals
UL recognized to UL 60950-1:2003
CUR recognized to CSA22.2, No. 60950-1-03
TUV certified to EN60950-1
FCC rules, Part 15, Class A
ICES-003, Class A
EMC Directive 2004/108/EEC (CE Mark)
- EN55022, Class A
- EN55024
Australian EMC Framework (C-Tick Mark)
Japan VCCI, Class A
Korea KCC, Class A
EU RoHS Compliant (Directive 2002/95/EC)
China RoHS compliant
