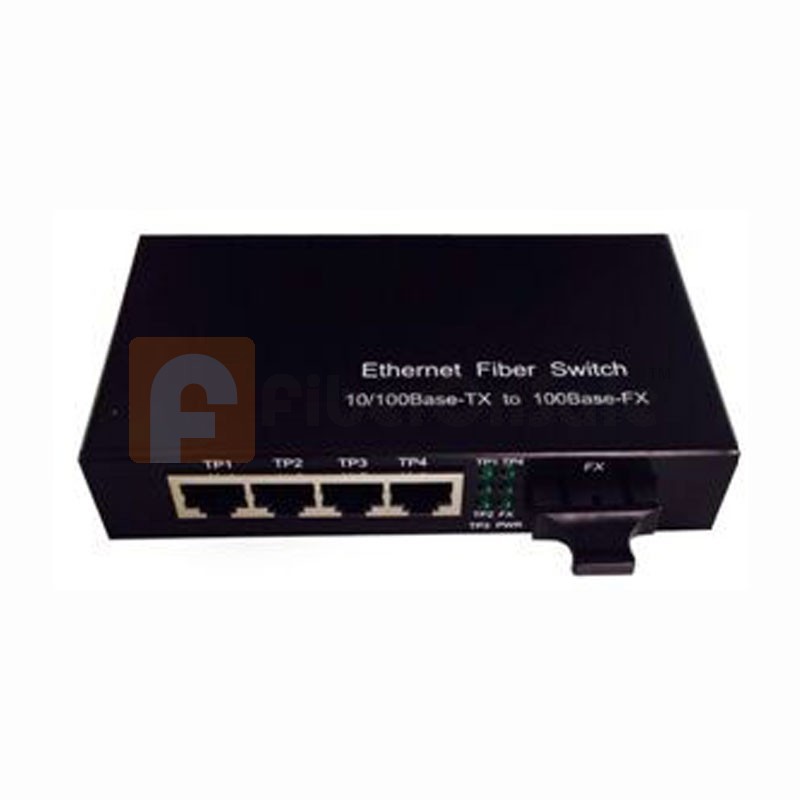

COV-SF05A-S-6, 10/100M Ethernet Singlemode Fiber Converter, (4*UTP + 1*SMF Port)
There are one 100M optical fiber port and four 10/100M UTP ports. The product is possessed of stable performance, excellent
quality and reasonable price because of adopting latest IC from USA and high quality of transceivers. It is applicable to
use in small patterns of Optical Fiber Ethernet.
Product Description:
● It can convert Optical-Electric Ethernet signals between 10/100M UTP ports (TX) and 100M optical fiber interface (FX)
● UTP port supports MDI / MDI-X auto crossover
● Broadcast storm protection
● Supporting the max 1916 bytes frame
● Operating standards: IEEE802.3u 100Base-TX and 100Base-FX
● Connector
UTP: RJ-45, 10/100Mbps
Fiber: ST/SC/FC, 100Mbps (Full Duplex)
● Cable
UTP: Cat. 5 (the max distance up to 100m)
Fiber (multimode): 50/125, 62.5/125μm(the max distance up to 2km)
Fiber (singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm (the max distance up to 100km)
● Flow Control
Full Duplex: IEEE802.3x flow control
Half Duplex: bake pressure flow control
● Power supply: AC110 ~ 240V
● Environment temperature: 0 ~ +50℃
● Storage temperature: -20 ~ +70℃
● Humidity: 5% ~ 90%
● Dimensions: 130*70*26mm
quality and reasonable price because of adopting latest IC from USA and high quality of transceivers. It is applicable to
use in small patterns of Optical Fiber Ethernet.
Product Description:
● It can convert Optical-Electric Ethernet signals between 10/100M UTP ports (TX) and 100M optical fiber interface (FX)
● UTP port supports MDI / MDI-X auto crossover
● Broadcast storm protection
● Supporting the max 1916 bytes frame
● Operating standards: IEEE802.3u 100Base-TX and 100Base-FX
● Connector
UTP: RJ-45, 10/100Mbps
Fiber: ST/SC/FC, 100Mbps (Full Duplex)
● Cable
UTP: Cat. 5 (the max distance up to 100m)
Fiber (multimode): 50/125, 62.5/125μm(the max distance up to 2km)
Fiber (singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm (the max distance up to 100km)
● Flow Control
Full Duplex: IEEE802.3x flow control
Half Duplex: bake pressure flow control
● Power supply: AC110 ~ 240V
● Environment temperature: 0 ~ +50℃
● Storage temperature: -20 ~ +70℃
● Humidity: 5% ~ 90%
● Dimensions: 130*70*26mm
