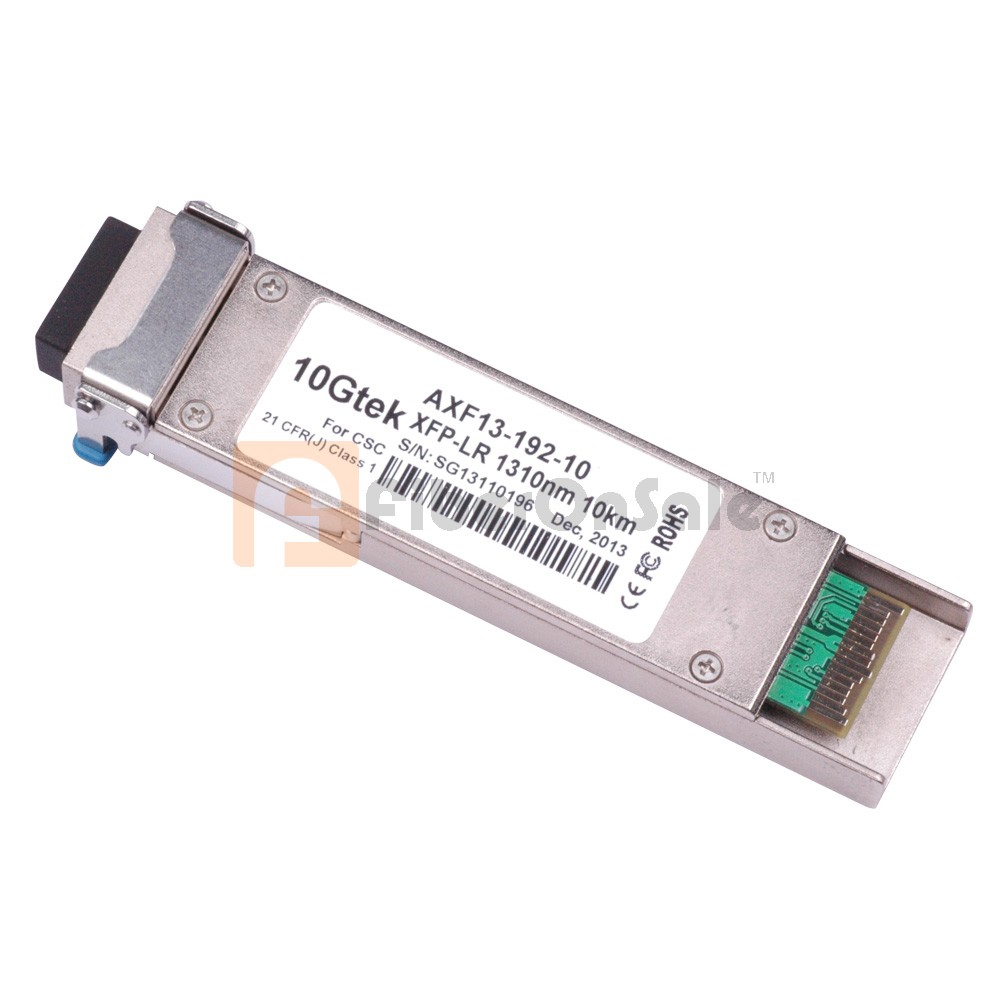

H3C JD108A Compatible 10GBASE-LR XFP 1310nm 10km Transceiver Module

Payment:: Paypal or Credit/debit card
Wire Transfer, West Union | See details

Returns:: Satisfactory return or item exchange | See details

Guarantee:: Money back guarantee | See details

Warranty:: Limited Warranty | See details

Volume pricing:: If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.

Need Help?
Click here we can help you

SKU#:JD108A

Evaluate:

(0 Reviews) | Write a Review

Price:

$178.00

$125.00

Quick Overview:

In Stock >100pcs
Compatible with: Cisco, Juniper, Extreme, Allied Telesis, Foundry, Force10, Alcatel-Lucent...and more
Warranty: 3-Year

Qty:

H3C Compatible 10GBASE-LR XFP Transceiver Module

Description
Review

Processing Time: Processes in 24 hours: Processing Time is guaranteed to be shorter.; Typical Processing Time: 1-2 weeks

Shipping Time: FedEx Overnight: Within 1-4 business days; DHL: Within 2-6 business days; EMS: Within 4-15 business days; UPS: Within 2-5 business days; Hong Kong Post Airmail: Within 10-30 business days

Payment Methods

H3C JD108A Compatible 10GBASE-LR XFP 1310nm 10km Transceiver Module

XFP(10GbE Gigabit Small Form Factor Pluggable) is a hot-swappable, protocol independent optical transceiver, typically operating at 850nm, 1310nm or 1550nm, for 10 Gigabit per second SONET/SDH, Fibre Channel, gigabit Ethernet, 10 gigabit Ethernet and other applications, including DWDM links. It includes digital diagnostics similar to SFF-8472 but more extensive, that provide a robust management tool. The XFI electrical interface specification is a portion of the XFP Multi Source Agreement specification. OC-192 / STM-64 is a network line with transmission speeds of up to 9953.28 Mbit/s (payload: 9621.504 Mbit/s; overhead: 331.776 Mbit/s). We manufacture XFP MM 300m, XFP 10km, XFP 20km, XFP 40km, XFP 80km, XFP 120km, CWDM XFP, DWDM XFP, BiDi XFP, single fiber XFP.

Product Features:
● JD108A
● Supports 9.95Gb/s to 11.1Gb/s bit rates
● Link length up to 10km
● Uncooled 1310nm DFB laser
● Duplex LC connector
● Hot-pluggable XFP footprint
● Power dissipation <2.5W
● Built-in digital diagnostic functions
● Complaint with XFP MSA
● Complaint with IEEE 802.3ae,10GBASE-LR/LW
● Complaint with 10GFC 1200-SM-LL-L
● Operating Case Temperature Standard:0℃~+70℃

Applications:
● SONET OC-192 SR-1，SDH STM I-64.1 at 9.953Gbps
● 10GBASE-LR/LW 10G Ethernet
● 1200-SM-LL-L 10G Fiber Channel
● 10GE over G.709 at 11.09Gbps
● OC192 over FEC at 10.709Gbps

Features:

JD108A
Supports 9.95Gb/s to 11.1Gb/s bit rates
Link length up to 10km
Uncooled 1310nm DFB laser
Duplex LC connector
Hot-pluggable XFP footprint
Power dissipation <2.5W
Built-in digital diagnostic functions
Complaint with XFP MSA
Complaint with IEEE 802.3ae,10GBASE-LR/LW
Complaint with 10GFC 1200-SM-LL-L
Operating Case Temperature Standard:0℃~+70℃

Applications:

SONET OC-192 SR-1，SDH STM I-64.1 at 9.953Gbps
10GBASE-LR/LW 10G Ethernet
1200-SM-LL-L 10G Fiber Channel
10GE over G.709 at 11.09Gbps
OC192 over FEC at 10.709Gbps

Order Information:

Part Number	Description	Data Rate	Wave length	Reach	Fiber Type	TX Power (dBm)	Rx Sens. (dBm)	DDM/DOM	Temp. Range(°C)
AXF85-192-M3	XFP Transceiver 10GBase-SR 850nm 300M \| XFP-10G-MM-SR	10Gbps	850nm	300m	OM3 MMF	-6 ~ -1	< -11	Y	0~70
AXF13-192-10	XFP Transceiver 10GBase-LR 1310nm 10KM \| XFP-10GLR-OC192SR	10Gbps	1310nm	10 km	SMF	-3 ~ 1	< -12	Y	0~70
AXF15-192-40	XFP Transceiver 10GBase-ER 1550nm 40KM \| XFP-10GER-OC192IR	10Gbps	1550nm	40 km	SMF	4 ~ -1	< -16	Y	0~70
AXF15-192-80	XFP Transceiver 10GBase-ZR 1550nm 80KM \| XFP-10GZR-OC192LR	10Gbps	1550nm	80 km	SMF	5 ~ 0	< -23	Y	0~70
AXF23-192-10	XFP,10Gb/s,BiDi, 10GBase-LR, SMF, Tx1270/Rx1330nm, 10KM	10Gbps	TX1270/ RX1330nm	10 km	SMF	-5 ~ 0	< -14	Y	0~70
AXF32-192-10	XFP,10Gb/s,BiDi, 10GBase-LR, SMF, Tx1330/Rx1270nm, 10KM	10Gbps	TX1330/ RX1270nm	10 km	SMF	-5 ~ 0	< -14	Y	0~70
AXFxx-192-40	XFP Transceiver 10GBase-ER10Gb/s CWDM 40KM	10Gbps	CWDM	40 km				Y	0~70
AXFxx-192-80	XFP Transceiver 10GBase-ZR 10Gb/s CWDM 80KM	10Gbps	CWDM	80 km		5 ~ 0	< -23	Y	0~70
AXFDxx-192-40	XFP Transceiver 10GBase-ER 10Gb/s DWDM 40KM	10Gbps	DWDM	40 km				Y	0~70
AXFDxx-192-80	XFP Transceiver 10GBase-ZR 10Gb/s DWDM 80KM	10Gbps	DWDM	80 km		5 ~ 0	< -24	Y	0~70
