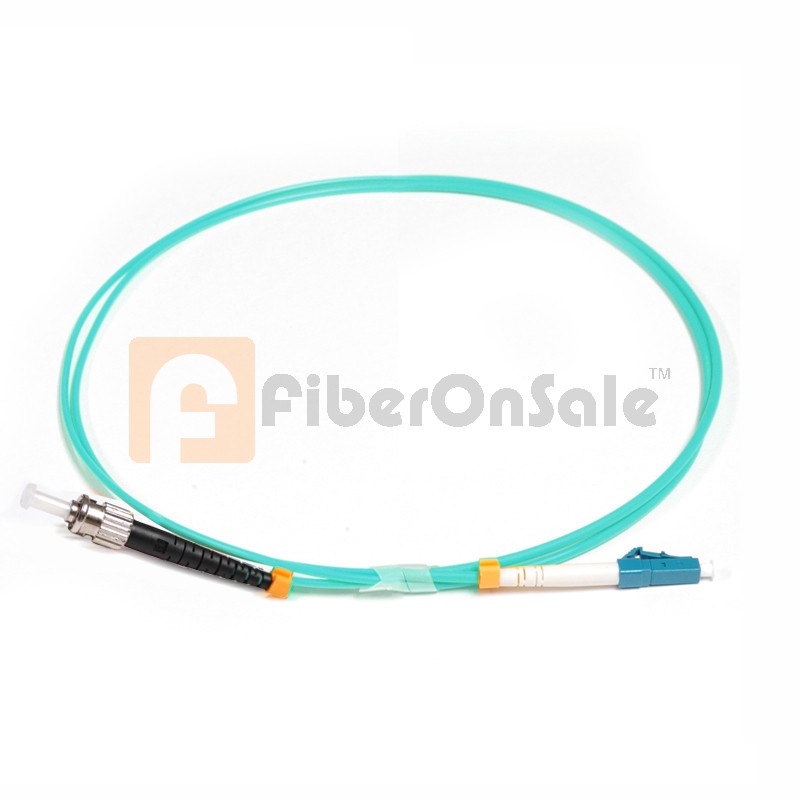

LC-ST Simplex 10Gb OM3 50/125 Multimode Fiber Patch Cable
Specifications:
● LC to ST, Simplex
● MMF,OM3(50/125μm)
● Cable Diameter: 0.9mm / 2.0mm / 3.0mm (Price is same for the 3 diameters. You can specify your requirements in your order comments.)
● Polish: UPC/PC
Performance index:
● LC to ST, Simplex
● MMF,OM3(50/125μm)
● Cable Diameter: 0.9mm / 2.0mm / 3.0mm (Price is same for the 3 diameters. You can specify your requirements in your order comments.)
● Polish: UPC/PC
Performance index:
| Parameter | Unit | FC, SC, LC | ST, MU | MT-RJ, MPO | E2000 | |||||||||||||
| SM | MM | SM | MM | SM | MM | SM | ||||||||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | |||||||
| Insertion loss (typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | |||||
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 | |||||
| Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 | |||||||||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | |||||||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | |||||||||||||
| Operating temperature | ℃ | -40~75 | -40~75 | -40~75 | -40~75 | |||||||||||||
| Storage temperature | ℃ | -45~85 | -45~85 | -45~85 | -45~85 | |||||||||||||
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | |||||||||||||
