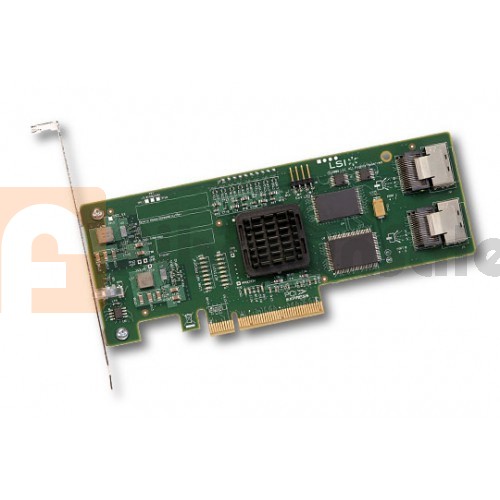

LSI SAS 3081E-R
LSI SAS 3081E-R HOST BUS ADAPTER
PCI Bus: PCI Express
PCI Modes: Bus Master DMA
PCI Card Type: 3.3 Volt Add-in Card
PCI Voltage: +12V ±10%
PCI Form Factor: 6.6” x 2.5” (Low Profile)
PCI Power: 10 Watts
Bracket: Full Height and Low Profile
PCI Certification: PCI Express 1.0a
SAS Bus: Eight 3Gb/s SAS/SATA Ports
SAS Controller: ASIC LSISAS1068E
Connectors
Internal: Two – x4 Connectors (SFF-8087)
External: N/A
LED Indicators: Eight – Internal Activity per PHY
Eight – Internal Fault per PHY
Integrated RAID Levels: RAID 0, 1, 1E and 10E
Max. Number of Physical Devices: 244
Environments Operating: 0°C to 60°C, 5 to 90% Non-condensing
Storage: -45°C to 105°C, 5 to 90% Non-condensing
MTFB: >200,000 Hours
Compliances: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/ New Zealand (AS/NZS 3548); Safety: EN60950
Operating System Support: All OS drivers are backed by extensive testing and validation to ensure optimum system performance. For a list of the most current supported drivers, visit: lsi.com/support
