LSI SAS 9201-16e

LSI SAS 9201-16e

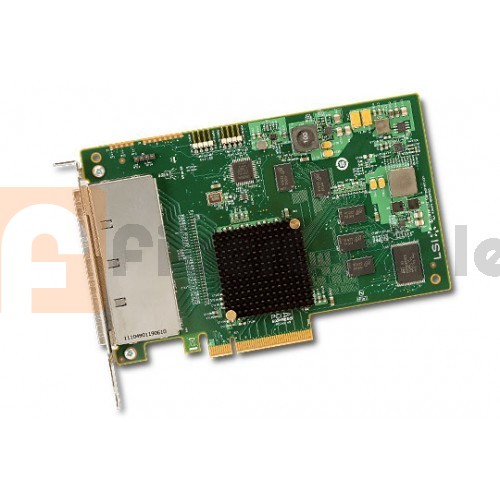

LSI SAS 9201-16e HOST BUS ADAPTER

IO Controller: LSISAS2116, Fusion MPT 2.0
Storage Connectivity: 16
Data Transfer Rates: 6Gb/s SAS 2.0 Compliant
SAS Bandwidth: 600 MB/s per lane
Port Configurations: 16 ea, x1 ports (individual drives)
4 ea, x4 wide ports
Host Bus: x8 lane, PCI Express 2.0 compliant
PCI Data Burst Transfer Rates: x8, PCIe, 4000 MB/s
Physical Dimensions: Full Height (4.2” x 6.6”)
Connectors: Four Mini-SAS external connectors (SFF8088)
Brackets: Full height and low profile
Cable Support: Passive, Active Copper
PCI Card Type: 3.3 V Add-in Card
Operating Voltage: +12V +/-8%; 3.3V +/-8%
PCI Power (Nominal): 17W typical (Airflow min 200 LFM)
Device Support: 512 Non-RAID SAS/SATA devices
Environmental: Operating Storage
0°C to 55°C -45°C to 105°C
5 to 90% Non-condensing 5 to 90% Non-condensing
MTBF: >2,000,000 hours
Regulatory Certifications: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950; RoHS; WEEE
OS Support: Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD
See http://www.lsi.com/support/pages/downloads.aspx for details on versions
