QLA2342

QLA2342

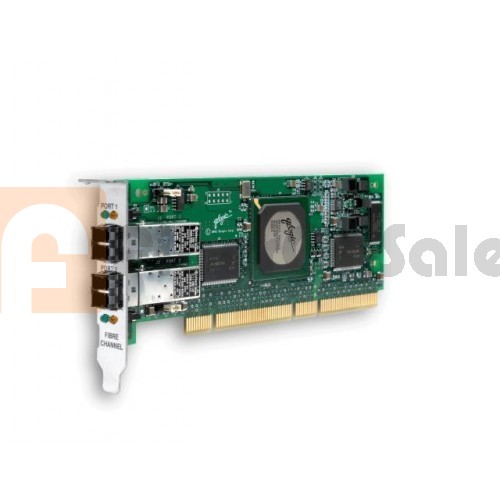

QLogic Dual-Port PCI-X 64bit 133 MHz 2Gb Fibre Channel Host Bus Adapter (HBA)

Host Bus Interface Specifications:
Speed: 64-bit, 133-MHz PCI-X
Voltage: 3.3 V and 5.0 V buses supported
Compliance: PCI Local Bus Specification rev. 2.2, PCI-X Addendum rev. 1.0a, PCI Hot Plug Specification 1.0, PCI Bus Power Management Interface Specification rev 1.1

Fibre Channel Specifications:
Speed: 200 MBps maximum at half-duplex, 400 MBps maximum at full-duplex
Compliance: Second Generation FC Generic Services Definition (FC-GS-2), Third Generation FC Generic Services Definition (FC-GS-3), Fibre Channel-Physical and Signaling Interface (FC-PH),
SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel-Arbitrated Loop-2 (FC-AL-2), Fibre Channel-Private Loop Direct Attach Technical Report (FC-PLDA), RFC 2625 IP and APR
Over Fibre Channel, Fibre Channel Framing and Signaling (FC-FS)
Topology: FC-AL, FC-AL-2, point to point, switched fabric (FL_Port and F_Port)
Class of service: Class 3 Fibre Channel service
Protocol: SCSI-FCP, IP, FC-TAPE
Buffer credits: For 512-byte frame size, 9 credits issued. For 2K-byte frame size, 3 credits issued.

Physical Specifications:
Ports: Two
Media: Multimode optic
Optics: Short wave laser
Form factor: Low-profile MD2: 16.93 cm×5.15 cm (6.7"×2.5")
Bracket size: standard size
Connectors: Two LC-style connectors that support non-OFC, multimode fibre optic cabling using small form factor optical transceiver modules
Power consumption: ~ 8.0 watts

Environment and Equipment Specifications:
Airflow: 0 lf/m
Temperature Operating: 0°C/32°F to 55°C/131°F. Storage: –20°C/–4°F to 70°C/158°F
Humidity Relative (noncondensing): 10% to 90%, Storage: 5% to 95%
Distance 1 Gbps: 500 meters 50/125 μm fiber, 300 meters 62.5/125 μm fiber
2 Gbps: 300 meters 50/125 μm fiber, 150 meters 62.5/125 μm fiber
Cable 50/125μm multimode fiber, 62.5/125 μm multimode fiber
