QLE2464

QLE2464

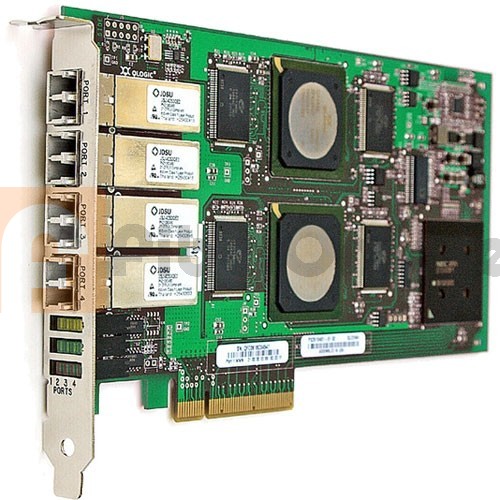

QLogic 4Gbps quad-port Fibre Channel-to-x8 PCI Express adapter, multi-mode optic.

Host Bus Interface Specifications
Bus Interface: PCI Express?
Memory: 1MB SRAM per port, 1MB flash (SPI), and 2KB NVRAM (SPI)
Hardware Platforms1: IA32 (x86), IA64, IEM64T, AMD? Opteron? 64, Sun?, SPARC?, Apple? G5 (Xserve? and Power Mac?)
Compliance: PCI Express Base Specification, revision 1.0a, PCI Express Card Electromechanical Specification, revision 1.0, PCI Bus Power Management Interface Specification, revision 1.1

Fibre Channel Specifications
Data Rate: 4/2/1Gbps auto-negotiation (4.25/2.125/1.0625GBps)
Performance: 150,000 IOPS per port
Topology: Point-to-point (N_Port), arbitrated loop (NL_Port), switched fabric (N_Port)
Logins: Support for F_Port and FL_Port login: 2,048 concurrent logins and 2,048 active exchanges per port
Class of Service: Class 2 and 3
Protocols: FCP (SCSI-FCP), FC-TA PE (FCP-2)
Compliance: SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel Physical and Signaling Interface (FCPH), Fibre Channel 2nd Generation (FC-PH-2), Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3), Fibre Channel-Arbitrated Loop (FCAL- 2), Fibre Channel Fabric Loop Attachment Technical Report (FC-FLA), Fibre Channel-Private Loop Direct Attach Technical Report (FC-PLDA), Fibre Channel Tape (FC-TAPE) profile, SCSI Fibre Channel Protocol-2 (FCP-2), Second Generation Fibre Channel Generic Services (FC-GS-2), Third Generation Fibre Channel Generic Services (FC-GS-3), Fibre Channel Framing and Signaling (FC-FS)

Physical Specifications
Ports: quad 4Gbps Fibre Channel
Form Factor: Full-height PCIe card (8 in. × 4.376 in.)

Tools and Utilities
Management Tools: QConvergeConsole: a unified management tool (GUI and CLI) for Fibre Channel
Device Utilities: Utilities for flashing bootcode
Linux? scripting tools
Boot Support: BIOS, EFI, FCode
APIs: SNIA HBA API V2, SMI-S, FDMI
Operating Systems: Microsoft? Windows Server?, Windows XP Professional?, Windows Vista?; Red Hat Linux?; Novell? SLES, NetWare?; VMware? ESX?/ESXi; Oracle? Solaris?, Linux; Citrix? XenServer?; Apple Mac OS?

Environment and Equipment Specifications
Airflow: No airflow required
Temperature: Operating: 0°C/32°F to 55°C/131°F
Storage: –20°C/–4°F to 70°C/158°F
Humidity: Relative (non-condensing): 10% to 90%
Storage: 5% to 95%
Power Consumption: 16watts (maximum)
Cable Distances: 1Gbps: 500meters 50/125μm fibre, 300meters 62.5/125μm fibre
2Gbps: 300meters 50/125μm fibre, 150meters 62.5/125μm fibre
4Gbps: 150meters 50/125μm fibre, 70meters 62.5/125μm fibre

Agency Approvals—EMI and EMC
US: FCC Class A
Canada: Class A
Europe: 2004/108/EC/EEC EMC Directive CE Mark, EN55022:
1998/CISPR22:1997:Class A, EN55024: 1998, EN61000-3-2:1995,EN61000-3-3:1994, EN61000-3-2: 2000 and EN61000-3-3: 2001
Japan: Class A
Taiwan: Class A
New Zealand and Australia: Class A
Korea: Korea Class A
