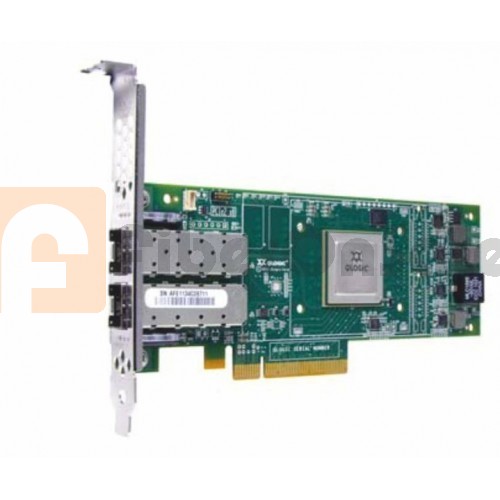

QLE2672-CK
QLogic 16Gbps dual-port Fibre Channel-to-PCI Express adapter, multi-mode optic.
Host Bus Interface Specifications
Bus Interface: PCI Express Gen3 x4, Gen2 x8 (x8 physical connector)
Host Interrupts: INTx and MSI-X
Compliance: PCI Express Base Specification, rev. 3.0, PCI Express Card Electromechanical Specification, rev. 2.0, PCI Bus Power Management Interface Specification, rev. 1.2
Fibre Channel Specifications
Throughput: 16Gbps full-duplex line rate per port (maximum)
Logins: Support for 2,048 concurrent logins and 2,048 active exchanges
Expandable to 16K concurrent logins and 32K active exchanges
Port Virtualization: NPIV
Compliance: SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel Tape (FC-TAPE) Profile, SCSI Fibre Channel Protocol-2 (FCP-2), Second Generation FC Generic Services (FC-GS-2), and Third Generation FC Generic Services (FC-GS-3)
Tools and Utilities
Management Tools and Device Utilities: QConvergeConsole: a unified management tool (GUI and CLI) for Fibre Channel/FCoE, iSCSI, and networking
Boot Support: BIOS, UEFI, FCode
APIs: SNIA HBA API V2, SMI-S
Operating Systems: For the latest applicable operating system information,
see http://driverdownloads.qlogic.com.
Physical Specifications
Ports: dual 16Gbps Fibre Channel
Form Factor: Low-profile PCIe card: (6.6 inches × 2.54 inches)
Custom form factors also available
Environment and Equipment Specifications
Temperature: Operating: 0°C/32°F to 55°C/131°F
Storage: –20°C/–4°F to 70°C/158°F
Humidity: Relative (noncondensing): 10% to 90%
Storage: 5% to 95%
